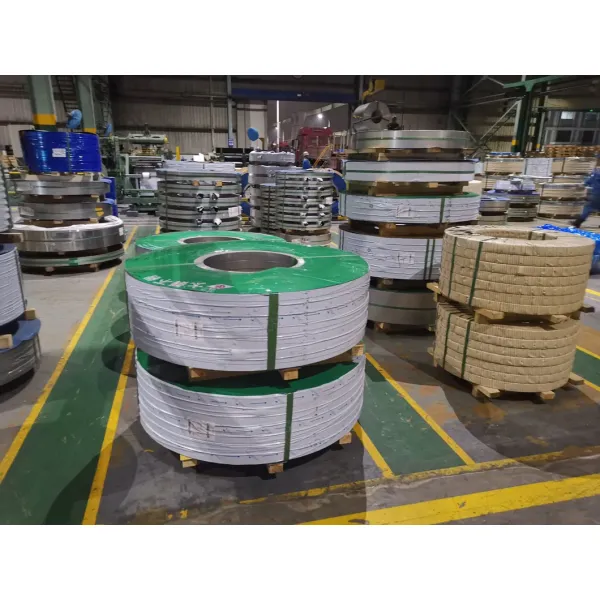

Inconel 600 / Ns312 / N06600 / Na14 / Nc15fe / 2.4816 T0.1-1.0mm Cold Rolled Coils
We are a professional manufacturer of Inconel 600 plates, sheets, strips, and coils (UNS N06600, 2.4816, Alloy 600, inconel600). Our production capabilities include comprehensive size ranges and surface finishes to meet diverse industrial requirements.
Product Specifications
Available Forms & Dimensions
Plates & Sheets: Thickness range from 4.5mm to 200mm, up to 3000mm wide
Strips & Coils: Thickness range from 0.05mm to 3mm
Surface Finishes
2B / 2D / BA surface finishes available
Hardness Options
1/4 Hard, 1/2 Hard, 3/4 Hard, Full Hard, Spring Hard, Annealed, Pickled Soft
Material Specifications
Standard Designations
| UNS |
Trademark |
JIS |
W.Nr |
| N06600 |
Inconel600 |
NCF600 |
2.4816 |
Chemical Composition
| Alloy |
Element |
Ni |
Cr |
Fe |
C |
Mn |
Si |
Cu |
P |
S |
| 600 |
Min. |
72 |
14 |
6 |
- |
- |
- |
- |
- |
- |
| Max. |
- |
17 |
10 |
0.15 |
1 |
0.5 |
0.5 |
0.015 |
0.015 |
Physical Properties
| Density |
Melting Point |
| 8.4 g/cm³ |
1370-1425 °C |
Mechanical Properties
| Alloy Status |
Tensile Strength Rm N/mm² |
Yield Strength RP0.2 N/mm² |
Elongation A5 % |
Brinell Hardness HB |
| Annealing treatment |
550 |
240 |
30 |
95 |
| Solution treatment |
500 |
180 |
35 |
85 |
Material Characteristics
- Excellent corrosion resistance in reduction, oxidation, nitric, and other media
- Superior stress corrosion cracking resistance at both room temperature and high temperature
- Excellent corrosion resistance to dry chlorine and chlorine hydride
- Outstanding mechanical properties at sub-zero, room, and high temperatures
- Good anti-creep rupture strength, recommended for 700°C or above working environments
Metallurgical Structure
Face-centered cubic lattice structure
Application Fields
- Erosion thermocouple sheath of the atmosphere
- Vinyl chloride monomer production: corrosion resistance to chlorine, hydrogen chloride, oxidation and carbonation
Custom Processing Options
Customers can select various processing options to produce Inconel 600 plate to exact specifications, reducing material costs, production time, scrap, and internal handling. We can polish nearly any Inconel 600 plates, sheets, coils, and strips to #4, #6, #7, or #8 mirror finish, on one or both sides.
Quality Assurance
Test pieces are cut from each plate, sheet, coil, and strip and sent to our Metallurgical Laboratory. Using a computerized Certificate of Test system, experts verify if materials meet all requirements for shipment. Each piece is analyzed on an optical emission spectrometer to verify chemical content, with microstructure examined for strength, ductility, and corrosion resistance. All additional scrap is separated by grade and returned to a melt shop for recycling.
Industry Applications
Automotive: Trim and molding, difficult-to-form exhaust-system components, tubular manifolds, mufflers, exhaust manifold components, catalytic converter shells, clamps
Construction: Gutters and downspouts, roofing, siding
Kitchenware: Cooking utensils, dishwashers, ovens, range hoods, refrigerators, skewers
Chemical Processing: Oil refinery equipment, oil burner and heater parts
Appliances: Hot water tanks, residential furnaces
Power Generation: Heat exchanger tubing
Farming: Dry fertilizer spreaders, farm animal pens
How to Order
Please provide the following information:
1. Grade, Surface, Thickness, Size, Tolerance, Special request
2. Amount
3. Price Term
4. Contact information
