409L Stainless Steel Coil Strip
AISI 409L stainless steel strip and SUH409L stainless steel coil are premium cold-rolled steel products designed for decorative and construction applications. These materials feature enhanced corrosion resistance and mechanical properties compared to standard carbon steel.
Cold Rolled Steel Sheet in Coil 409L Stainless Steel for Decoration & Construction
Stainless steel differs from ordinary carbon steel through the addition of alloying elements such as Chromium (Cr), Nickel (Ni), Manganese (Mn), and Molybdenum (Mo). The corrosion resistance primarily depends on Chromium content, while Nickel ensures optimal microstructure and mechanical properties.
Chemical Composition
| Element |
C |
Mn |
P |
S |
Si |
Cr |
Ni |
| Content (%) ≤ |
0.08 |
2.00 |
0.045 |
0.030 |
1.00 |
18.0-20.0 |
8.0-11.0 |
Mechanical Properties
| Yield Strength (N/mm²) |
Tensile Strength (N/mm²) |
Elongation |
Hardness |
| ≥205 |
≥520 |
≥40% |
HB ≤187 / HRB ≤90 |
Available Materials
Carbon Steel
Q195, Q235, Q345, etc.
200 Series
201, 202
300 Series
301, 304, 304L, 309S, 310S, 316L, 317L, 321, 904L
400 Series
409L, 410, 420, 430, 439, 441
Standard Sizes
- Width: 1219mm or custom requirements
- Thickness: 1-5mm
Our professional processing facility provides precision cutting services for stainless steel sheets.
Surface Finishes
| Finish |
Description & Processing |
| No.4 |
Good gloss with fine surface lines. Processing: Polishing and tempering rolling of 2D or 2B products with 150-180 abrasive material. |
| HL |
Silver-gray with hairline streaks. Processing: Polishing 2D or 2B products with suitable abrasive material for continuous grain appearance. |
| 8K |
Mirror finish state. Processing: Grinding and polishing 2D or 2B products to mirror effect with suitable abrasive material. |
| 2B |
Silvery white with superior gloss and flatness compared to 2D. Processing: Hot rolling + annealing shot peening pickling + cold rolling + annealing pickling + quenching and tempering rolling. |
| BA |
Excellent surface gloss with high reflectivity, similar to mirror surface. Processing: Hot rolling + annealing shot peening pickling + cold rolling + annealing pickling + surface polishing + quenched and tempered rolling. |
| 1D |
Discontinuous particle surface, also known as matte finish. Processing: Hot rolling + annealing shot peening pickling + cold rolling + annealing pickling. |
| 2D |
Slightly shiny silvery white surface. Processing: Hot rolling + annealing shot peening pickling + cold rolling + annealing pickling. |
| No.3 |
Better gloss with rough surface texture. Processing: Polishing and tempering rolling of 2D or 2B products with 100-120 abrasive materials. |
| SB |
Smooth surface with clear, delicate texture and sophisticated appearance. Widely praised in kitchen appliance applications. |
Custom surface treatments available. Our stainless steel processing factory in Wuxi accommodates special requirements.
Standards Compliance
GB, JIS, ASTM, EN, DIN, AISI
Packaging
Standard stainless steel shipping packaging or customized packaging as per customer requirements.

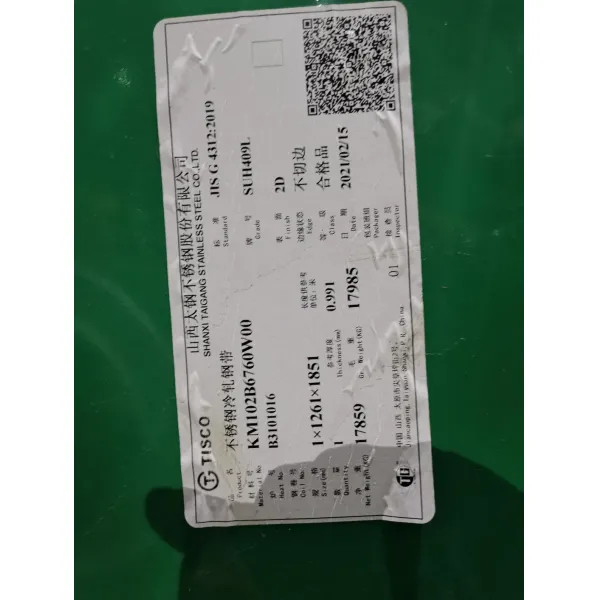

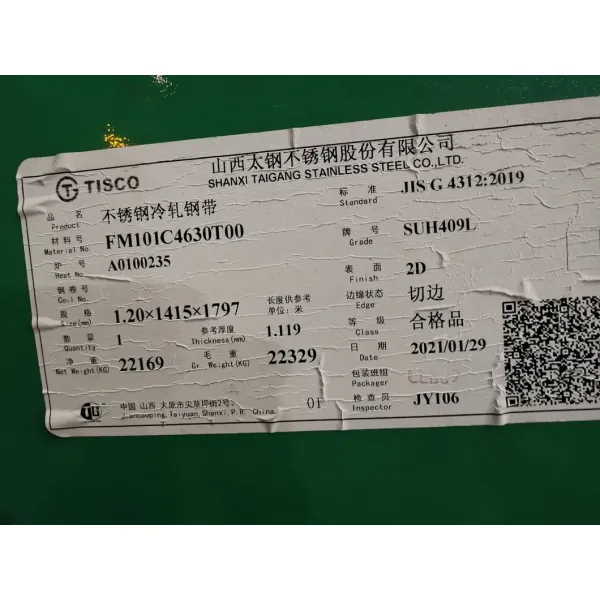

Product Images
